USER MANUAL INDEX

USER MANUAL INDEX

Important: If you have LDPlayer v.4.37 or higher, then ADB root access needs to be enabled or AHC won’t work. (Click here for more details)

For BLUESTACK USERS, The Asian Hand Converter will NOT work with V5. You need to use V4 only. You can download either version from the Bluestacks website.

Initial Setup (Section 1)

LDPlayer Emulator Setup (Section 2A)

BlueStacks Emulator Setup (Section 2B)

PokerTracker 4 Setup (Section 3)

Holdem Manager 2 Setup (Section 4)

Holdem Manager 3 Setup (Section 5)

BlueStacks Setup with Holdem Manager 3 (Section 6)

DriveHUD 2 Setup (Section 7)

Settings (Section 8)

Additional Setup Videos (Section 9)

How to setup Suprema Poker with Asian Hand Converter and Holdem Manager 3 (Section 10)

How to setup Suprema Poker with Asian Hand Converter and PokerTracker 4 (Section 11)

How to setup Suprema Poker with Asian Hand Converter integrated in DriveHUD 2 (Section 12)

How to setup X-Poker with Asian Hand Converter and Holdem Manager 3 (Section 13)

How to setup X-Poker with Asian Hand Converter and PokerTracker 4 (Section 14)

How to setup X-Poker with Asian Hand Converter integrated in DriveHUD 2 (Section 15)

Initial Setup (Section 1)

1)



Initial Setup (Section 1)

  1. On the first load of the Asian Poker Hand Converter, you’ll be asked to pick your database. The Asian Poker Hand Converter supports DriveHUD, Holdem Manager 2, and PokerTracker 4 for HUD Support. It will catch hands in real time for importing into Holdem Manager 1 and PokerTracker 3, but will not launch a HUD.

  1. Asian Poker Hand Converter will auto setup your import directories for you. Once it’s set up you’ll receive the below message. However, it’s important to double check your settings in your poker database to ensure that your database is importing from the correct directory (see section 2 for PokerTracker 4 or section 3, for Holdem Manager 2. DriveHUD doesn’t need the import settings).

Go back to the top



LDPlayer Emulator Setup (Section 2A)







LDPlayer Emulator Setup (Section 2A)

NOTE: Currently ONLY LDplayer version 3 and LDplayer V4 are supported.

Important: If you have LDPlayer v.4.37 or higher, then ADB root access needs to be enabled or AHC won’t work. (Click here for more details)



[VIDEO] This is a setup and tutorial guide on how to download and setup LD Player Emulator

1. Download the latest emulator (for PC)

Click here to download LDPlayer V4. emulator

Click here to download NOX emulator

Click here to download Bluestacks emulator







2. Install the emulator.



3. Launch the emulator



4. Basic buttons and Settings – on the top, you have the settings button. While on the lower right are the back, home, and app switch buttons.



How to download and install a poker app APK file

5. Download poker app APK file (ex: Red Dragon Poker)



6. Install the poker app. (by dragging or double-clicking)



7. Launch the poker app.



8. Settings – accessed by clicking the gear icon. Here, you can adjust various settings to improve your gameplay.



Click on “Save” for changes to take effect.

Go back to the top

How to enable ABD root access in LDPlayer





How to enable ABD root access in LDPlayer

9. Click on Settings. (Gear icon)





10. Click on Other Settings.



11. Set Root Permission to ‘Enable’.



12. Set ADB Debug to ‘Open Remote Connection’.



13. Click Save.



Go back to the top

BlueStacks Emulator Setup (Section 2B)







BlueStacks Emulator Setup (Section 2B)

For BLUESTACK USERS, The Asian Hand Converter will NOT work with V5. You need to use V4 only. You can download either version from the Bluestacks website.



BlueStacks is one of our preferred emulators PLUS it works really well with Asian Hand Converter. (which allows you to run a HUD on these poker apps!)



[VIDEO] This is a setup and tutorial guide on how to download and setup BlueStacks Emulator



1. Download the latest emulator (for PC).

Click here to download the Bluestacks emulator.





2. Install the emulator.



3. Launch the emulator



4. Basic buttons and Settings – on the top, you have the Home button/tab and the ‘My Games’ section. While on the lower right are the back and settings buttons.





How to download and install a poker app APK file

5. Download poker app APK file (ex: Red Dragon Poker)



6. Install the poker app. (by dragging or double-clicking)



7. Launch the poker app.



8. Settings – accessed by clicking the gear icon. Here, you can adjust various settings to improve your gameplay.





Click on “Save” for changes to take effect.



Go back to the top

PokerTracker 4 Setup (Section 3)







PokerTracker 4 Setup (Section 3)

  1. In PokerTracker 4, check your auto import directory setup by clicking on CONFIGURE from your top menu options. Then click on SITE & IMPORT OPTIONS. Under Poker Network on the left-hand side, select RED DRAGON (or the poker site you’re looking to configure the Asian hand converter with, ie, PokerTime, PokerBros, etc…). Make sure that Get Hands while playing on site is CHECKED. Under Directories Configuration, make sure that the Asian Poker Hand Converter directory is listed. If you used the default installation directory it will be: C:\Program Files (x86)\Ace Poker Solutions\Asian Hand Converter\HM3HandHistories\rdp_hh. If it’s not there, then click the ADD button, and add: C:\Program Files (x86)\Ace Poker Solutions\Asian Hand Converter\HM3HandHistories\rdp_hh. Click OK and close the Import Configuration screen.

  1. Load up poker client and log into your account.

  2. Once the import folder is properly set up, make sure that the Asian Poker Hand Converter says STOP CATCHING (this means it’s grabbing hands from your poker client and creating hand histories on the main interface. If it doesn’t for any reason, then click START CATCHER.

  3. Lastly, from PokerTraker 4 click on PLAY POKER, and GET HANDS WHILE PLAYING.

PokerTracker 4

Load up some tables with your emulator or with your poker client and start playing. The HUD will take a hand or two to load from PokerTracker and then the HUD will appear on the tables.

PokerTracker 4 Setup Video

5 minute video on how to setup the Asian hand converter with PokerTracker 4.

For more information or assistance, please visit our support page: https://drivehud.com/support/

Go back to the top

Holdem Manager 2 Setup (Section 4)







Holdem Manager 2 Setup (Section 4)

  1. In Holdem Manager 2, click on SITE SETUP. On the left-hand side of the Site Settings pop-up click on ASIAN POKER CLUBS. Under AUTO IMPORT FOLDERS, check to see that the Asian Poker Hand Converter directory is listed. If you used the default install locations the folder will show as: C:\Program Files (x86)\Ace Poker Solutions\Asian Hand Converter\HandHistories. If it’s not listed, then click on the green + sign, and under folder, add: C:\Program Files (x86)\Ace Poker Solutions\Asian Hand Converter\HandHistories. Click OK. Click on Close to the Site Settings screen.

  1. Load up your Poker client and log into your account.

  2. Once the import folder is properly set up, click START CATCHER from the Asian Poker Hand Converter.

That’s it. You may need to click on STOP HUD and START HUD in the holdem manager ACTIVE SESSION screen, but you shouldn’t have to. If you want to manually attach the HUD, then proceed with the following:

  1. Now in Holdem Manager 2, click on the ACTIVE SESSION tab. Select whether you’re playing Cash or Tournaments, and then click STOP HUD.

PokerTracker 4

  1. Next click START HUD, and then wait until you’ve played at least one hand on the table you’re on. Once you’ve played a hand, click on the TABLE FINDER Button.

PokerTracker 4

  1. From the table finder pop-up window, select one of the tables you’re playing at and then right click and hold down the hud cross on the bottom left-hand corner of the screen and drag and drop it onto the corresponding table name. Make sure you match the table you first selected, to the table you’re now dragging the cross onto.

PokerTracker 4

  1. Lastly, it will ask you if you want to add the HUD to this table. Make sure the table name is correct and select OK. Repeat steps 4-6 for each table you’re playing on.

PokerTracker 4



Holdem Manager 2 Setup Video

The following video is a step by step guide on how to setup the Asian hand converter with Holdem Manager 2.

For more information or assistance, please visit our support page: https://drivehud.com/support/

Go back to the top

Holdem Manager 3 Setup (Section 5)







Holdem Manager 3 Setup (Section 5)

1. In Holdem Manager 3, click on TOOLS then SITE SETTINGS.



2. On the left-hand side of the Site SETTINGS pop-up, click on ADD MORE SITES.

3. Under More Sites, select RED DRAGON (or the poker site you’re looking to configure the Asian hand converter with, ie, PokerTime, PokerBros, etc…) and then click Update Sites.



4. Under Auto Import Folders, make sure that the Asian Poker Hand Converter directory is listed. If you used the default install locations the folder will show as: C:\Program Files (x86)\Ace Poker Solutions\Asian Hand Converter\HM3HandHistories\rdp_hh.

If it’s not listed, then click on ADD > three-dot button, and under folder, add: C:\Program Files (x86)\Ace Poker Solutions\Asian Hand Converter\HM3HandHistories\rdp_hh. Click OK. Click on Ok again to close the Site SETTINGS screen.

5. Load up your Poker client and log into your account.

6. Once the import folder is properly set up, click START CATCHER from the Asian Poker Hand Converter.

That’s it. You may need to click on STOP HUD and START HUD in the Holdem manager ACTIVE SESSION screen, but you shouldn’t have to.



Holdem Manager 3 Setup Video

5-minute video on how to set up the Asian hand converter with Holdem Manager 3.

For more information or further assistance, please visit our support page: https://drivehud.com/support/

Go back to the top

BlueStacks Setup with Holdem Manager 3







BlueStacks Setup with Holdem Manager 3 (Section 6)

4-minute video on how to set up the Asian hand converter with BlueStacks and Holdem Manager 3.

For more information or further assistance, please visit our support page: https://drivehud.com/support/

Go back to the top

DriveHUD Setup (Section 7)







DriveHUD 2 Setup (Section 7)

Very important: The Asian hand converter is integrated into DriveHUD 2. You want to use the integrated version of the Asian hand converter with DriveHUD 2. Do not use the stand-alone version of the Asian hand converter with DriveHUD 2. If you do, your emulator will just restart in a continuous loop.

To activate the Asian hand converter in DriveHUD 2, do the following:

1. Click on the APPS tab a the top of DriveHUD 2.

2. Click on INSTALLED APPS, and then click the LAUNCH button for the Asian hand converter.



3. You’ll be asked to register your hand converter. Enter your serial if you have it with your e-mail, or click TRIAL if you’re trying it out (there’s a fully functional 7-day trial).

4. By default all of the available sites are checked and enabled. If there’s sites you’re not playing on, and you want to save system resources, you can uncheck those sites from the list. You can go back at anytime and re-enable them.

That’s it. Once you activate and register it once, you’ll never have to revisit the settings unless you need to make a settings change.

Go back to the top

Settings (Section 8)







Settings (Section 8)

If you click on SETTINGS on the Asian Poker Hand Converter, you can change or enable the following settings:

  1. Database – Shows the currently selected database type. To change this, click on the change button and select DriveHUD, Holdem Manager 3 (HM3), or Poker Tracker 4 (PT4).
  2. Automatic Updates – This is checked by default and will prompt you when new updates are available. Uncheck to turn this message off on startup of the card catcher.
  3. Advanced Logging – Check this box to turn on advanced logging for debug purposes. To send a log to support, click on CREATE LOG, and then click on the open file location directory. The card catcher will create a .zip file with your logs you can send to support from this page: Support
  4. Disable Warnings – Checking this box will disable any warning messages that Red Dragon card catcher could show you on startup.
  5. Use Player ID – Allows users to use the poker site’s assigned user ID number instead of their username/alias. By default, the catcher will track an opponent’s username/alias, unless this option is checked.
  6. System Logging – Turns logging on or off.
  7. Output format – There are two choices of which hand history format the hands are written in. So depending on the database chosen, there are multiple options, iPoker, PokerStars or Asian poker clubs.
  8. Create Logs – Creates logs (for sending to support, etc.)
  9. Center HUD – moves hidden window which is used for allowing HM2/PT4 to find the window associated with hand history to be centralized relative to poker window.



Go back to the top

Additional Setup Videos (Section 9)



Additional Setup Videos (Section 9)

[VIDEO] HOW TO SETUP X-POKER WITH ASIAN HAND CONVERTER AND POKERTRACKER 4



[VIDEO] HOW TO SETUP X-POKER WITH ASIAN HAND CONVERTER AND HOLDEM MANAGER 3



[VIDEO] HOW TO SETUP SUPREMA POKER WITH ASIAN HAND CONVERTER AND POKERTRACKER 4



[VIDEO] HOW TO SETUP SUPREMA POKER WITH ASIAN HAND CONVERTER AND HOLDEM MANAGER 3





[VIDEO] HOW TO SETUP SUPREMA POKER & X-POKER WITH ASIAN HAND CONVERTER integrated in DriveHUD 2





[VIDEO] HOW TO DOWNLOAD AND SETUP NOXPLAYER EMULATOR

This is a setup and tutorial guide on how to download and setup NoxPlayer Emulator



[VIDEO] HOW TO DOWNLOAD AND SETUP BLUESTACKS EMULATOR

This is a setup and tutorial guide on how to download and setup BlueStacks Emulator



[VIDEO] HOW TO DOWNLOAD AND SETUP LDPLAYER EMULATOR

This is a setup and tutorial guide on how to download and setup LD Player Emulator



Holdem Manager 3  Setup Video

~5 minute video on how to setup the Asian hand converter with Holdem Manager 3.





Holdem Manager 2 Setup Video

The following video is a step by step guide on how to setup the Asian hand converter with Holdem Manager 2.





PokerTracker 4 Setup Video

5 minute video on how to setup the Asian hand converter with PokerTracker 4.





BlueStacks Setup with Holdem Manager 3

4-minute video on how to set up the Asian hand converter with BlueStacks and Holdem Manager 3.

For more information or assistance, please visit our support page: https://drivehud.com/support/

Go back to the top



How to setup Suprema Poker with Asian Hand Converter and Holdem Manager 3 (Section 10)



How to setup Suprema Poker with Asian Hand Converter and Holdem Manager 3 (Section 10)



1. In Holdem Manager 3, click on TOOLS then SITE SETTINGS.



2. On the left-hand side of the Site SETTINGS pop-up, click on ADD MORE SITES.



3. Under More Sites, select SupremaPoker and then click Update Sites.



4. Under Auto Import Folders, make sure that the Asian Poker Hand Converter directory is listed. If you used the default install locations the folder will show as: C:\Program Files (x86)\Ace Poker Solutions\Asian Hand Converter\HM3HandHistories\sprp_hh\.



If it’s not listed, then click on ADD > three-dot button, and under folder, add: C:\Program Files (x86)\Ace Poker Solutions\Asian Hand Converter\HM3HandHistories\sprp_hh\. Click OK. Click on Ok again to close the Site SETTINGS screen.



Important: AHC checks the db configuration on launch if appropriate options are checked in AHC settings (it’s checked by default, but you can disable it). If the configuration is incorrect, then AHC shows a pop-up with the warning message where you can also fix the db configuration.

But if that option is disabled, or for some reason AHC doesn’t detect problems in the db configuration, then you can go to the settings then switch between databases.

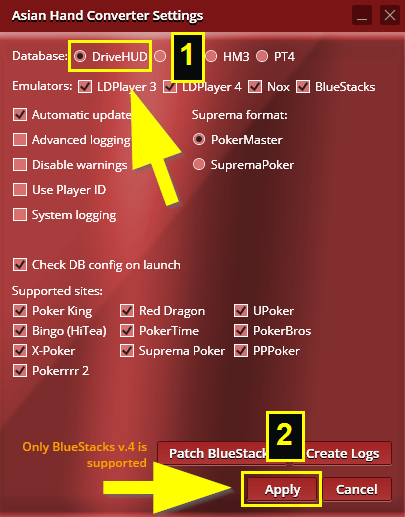

First, click on AHC settings:



Then select another database except HM3, then click on Apply.



Open AHC settings again:



This time, select HM3 database, then click on Apply.



When you switch between databases, then AHC updates the db configuration.



5. Load up your Poker client and log into your account.

6. Once the import folder is properly set up, click START CATCHER from the Asian Poker Hand Converter.



That’s it. You may need to click on STOP HUD and START HUD in the Holdem manager ACTIVE SESSION screen, but you shouldn’t have to.



Go back to the top





How to setup Suprema Poker with Asian Hand Converter and PokerTracker 4 (Section 11)



How to setup Suprema Poker with Asian Hand Converter and PokerTracker 4  (Section 11)



1. In PokerTracker 4, check your auto import directory setup by clicking on CONFIGURE from your top menu options. Then click on SITE & IMPORT OPTION





2. Under Poker Network on the left-hand side, select SupremaPoker.

3. Make sure that Get Hands while playing on site is CHECKED.

4. Under Directories Configuration, make sure that the Asian Poker Hand Converter directory is listed. If you used the default installation directory it will be: C:\Program Files (x86)\Ace Poker Solutions\Asian Hand Converter\HM3HandHistories\sprp_hh\.

If it’s not there, then click the ADD button, and add: C:\Program Files (x86)\Ace Poker Solutions\Asian Hand Converter\HM3HandHistories\sprp_hh\. Click OK and close the Import Configuration screen.



Important: AHC checks the db configuration on launch if appropriate options are checked in AHC settings (it’s checked by default, but you can disable it). If the configuration is incorrect, then AHC shows a pop-up with the warning message where you can also fix the db configuration.

But if that option is disabled, or for some reason AHC doesn’t detect problems in the db configuration, then you can go to the settings then switch between databases.

First, click on AHC settings:



Then select another database except PT4, then click on Apply.



Open AHC settings again:



This time, select PT4 database, then click on Apply.



When you switch between databases, then AHC updates the db configuration.



5. Load up poker client and log into your account.



6. Once the import folder is properly set up, make sure that the Asian Poker Hand Converter says STOP CATCHING (this means it’s grabbing hands from your poker client and creating hand histories on the main interface. If it doesn’t for any reason, then click START CATCHER.



7. Lastly, from PokerTraker 4 click on PLAY POKER, and GET HANDS WHILE PLAYING.



Load up some tables with your emulator or with your poker client and start playing. The HUD will take a hand or two to load from PokerTracker and then the HUD will appear on the tables.



Go back to the top





How to setup Suprema Poker with Asian Hand Converter integrated in DriveHUD 2 (Section 12)



How to setup Suprema Poker with Asian Hand Converter integrated in DriveHUD 2   (Section 12)



1. Click on the APPS tab at the top of DriveHUD 2.

2. Click on INSTALLED APPS, and then click the LAUNCH button for the Asian hand converter.





3. Asian Hand Converter will be launched and you’ll get a pop-up settings window. Make sure that Suprema Poker is checked.



4. As long as your Asian Hand Converter license is active, then there shouldn’t be any additional setup needed. Now you’re all set up and you can load up your poker client and start using Asian Hand Converter.



Go back to the top





How to setup X-Poker with Asian Hand Converter and Holdem Manager 3  (Section 13)



How to setup X-Poker with Asian Hand Converter and Holdem Manager 3  (Section 13)



1. In Holdem Manager 3, click on TOOLS then SITE SETTINGS.



2. On the left-hand side of the Site SETTINGS pop-up, click on ADD MORE SITES.



3. Under More Sites, select X-Poker and then click Update Sites.



4. Under Auto Import Folders, make sure that the Asian Poker Hand Converter directory is listed. If you used the default install locations the folder will show as: C:\Program Files (x86)\Ace Poker Solutions\Asian Hand Converter\HM3HandHistories\xpk_hh\.



If it’s not listed, then click on ADD > three-dot button, and under folder, add: C:\Program Files (x86)\Ace Poker Solutions\Asian Hand Converter\HM3HandHistories\xpk_hh\. Click OK. Click on Ok again to close the Site SETTINGS screen.



Important: AHC checks the db configuration on launch if appropriate options are checked in AHC settings (it’s checked by default, but you can disable it). If the configuration is incorrect, then AHC shows a pop-up with the warning message where you can also fix the db configuration.

But if that option is disabled, or for some reason AHC doesn’t detect problems in the db configuration, then you can go to the settings then switch between databases.

First, click on AHC settings:



Then select another database except HM3, then click on Apply.



Open AHC settings again:



This time, select HM3 database, then click on Apply.



When you switch between databases, then AHC updates the db configuration.



5. Load up your Poker client and log into your account.

6. Once the import folder is properly set up, click START CATCHER from the Asian Poker Hand Converter.



That’s it. You may need to click on STOP HUD and START HUD in the Holdem manager ACTIVE SESSION screen, but you shouldn’t have to.



Go back to the top





How to setup X-Poker with Asian Hand Converter and PokerTracker 4 (Section 14)



How to setup X-Poker with Asian Hand Converter and PokerTracker 4 (Section 14)



1. In PokerTracker 4, check your auto import directory setup by clicking on CONFIGURE from your top menu options. Then click on SITE & IMPORT OPTIONS.



2. Under Poker Network on the left-hand side, select X-Poker.

3. Make sure that Get Hands while playing on site is CHECKED.

4. Under Directories Configuration, make sure that the Asian Poker Hand Converter directory is listed. If you used the default installation directory it will be: C:\Program Files (x86)\Ace Poker Solutions\Asian Hand Converter\HM3HandHistories\xpk_hh\.

If it’s not there, then click the ADD button, and add: C:\Program Files (x86)\Ace Poker Solutions\Asian Hand Converter\HM3HandHistories\xpk_hh\. Click OK and close the Import Configuration screen.



Important: AHC checks the db configuration on launch if appropriate options are checked in AHC settings (it’s checked by default, but you can disable it). If the configuration is incorrect, then AHC shows a pop-up with the warning message where you can also fix the db configuration.

But if that option is disabled, or for some reason AHC doesn’t detect problems in the db configuration, then you can go to the settings then switch between databases.

First, click on AHC settings:



Then select another database except PT4, then click on Apply.



Open AHC settings again:



This time, select PT4 database, then click on Apply.



When you switch between databases, then AHC updates the db configuration.



5. Load up poker client and log into your account.



6. Once the import folder is properly set up, make sure that the Asian Poker Hand Converter says STOP CATCHING (this means it’s grabbing hands from your poker client and creating hand histories on the main interface. If it doesn’t for any reason, then click START CATCHER.



7. Lastly, from PokerTraker 4 click on PLAY POKER, and GET HANDS WHILE PLAYING.



Load up some tables with your emulator or with your poker client and start playing. The HUD will take a hand or two to load from PokerTracker and then the HUD will appear on the tables.



Go back to the top





How to setup X-Poker with Asian Hand Converter integrated in DriveHUD 2 (Section 15)



How to setup X-Poker with Asian Hand Converter integrated in DriveHUD 2 (Section 15)



1. Click on the APPS tab at the top of DriveHUD 2.

2. Click on INSTALLED APPS, and then click the LAUNCH button for the Asian hand converter.





3. Asian Hand Converter will be launched and you’ll get a pop-up settings window. Make sure that X-Poker is checked.



4. As long as your Asian Hand Converter license is active, then there shouldn’t be any additional setup needed. Now you’re all set up and you can load up your poker client and start using Asian Hand Converter.



Go back to the top



Previous [PT4] How to setup X-Poker with Asian Hand Converter and PokerTracker 4
Next How do I change hand history prefix?
Menu
